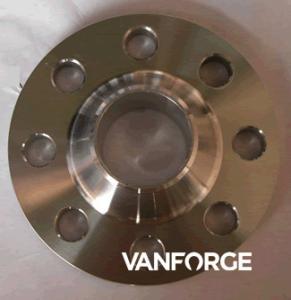

DIN 2656 ASME SA182 PN40 Forged Steel Flange High Precision Bright Surface

Name: DIN 2656 ASME SA182 PN40 Forged Steel Flange High Precision Bright Surface
Brand: VANFORGE
Price: 1 USD

China DIN 2656 ASME SA182 PN40 Forged Steel Flange High Precision Bright Surface wholesale

Brand Name : VANFORGE

Certification : ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED

Place of Origin : China

MOQ : 10 pcs

Payment Terms : L/C, T/T

Supply Ability : 3000 pcs per month

Delivery Time : 30 days

Packaging Details : Seaworthy package for export

Material : Austenitic stainless steels, duplex stainless steels

Process : Forged, machined

Treatment : Stress-relieved

Surface : Bright

Application : Petrochemical, chemical, paper and pulp

Feature : High precision

Standard : ANSI, ASTM, ASME, EN, DIN, JIS, GOST

Price : Negotiable

Contact Now

EN 1092-1 DIN 2656 ASME SA182 PN40 forged stainless steel loose flange

Stainless steel loose flanges PN 16 and 40, according to EN 1092-1 latest edition, type 02. Material EN 1.4404 (ASTM 316L), fully machined. Base material according to EN 10222-5/ASTM/ASME A/SA 182.

Vanforge's loose flanges according to EN are corrosion tested according to EN ISO 3651-2 latest edition and PMI checked. The stainless loose flanges are certified according to EN 10204/3.1.

Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
Duplex stainless steel: UNS S31803 / EN 1.4462
Super-duplex stainless steel: UNS S32750 / EN 1.4410

DIN 2656 ASME SA182 PN40 Forged Steel Flange High Precision Bright Surface

Loose flanges PN 40

EN 1092-1, type 02 (replaces DIN 2656)

Product code example:

FFL-316L-33.7-PN40

● = Standard

Pipe	O.D.	D	d₁	b	k	Drilling template		d₂	Weight	ASTM
DN	mm	mm		mm	mm	Holes	Thread	mm	kg/pce	316L
15	21.3	95	25	14	65	4	M 12	14	0.65	●
20	26.9	105	31	16	75	4	M 12	14	0.91	●
25	33.7	115	38	16	85	4	M 12	14	1.08	●
32	42.4	140	47	18	100	4	M 16	18	1.77	●
40	48.3	150	53	18	110	4	M 16	18	2.02	●
